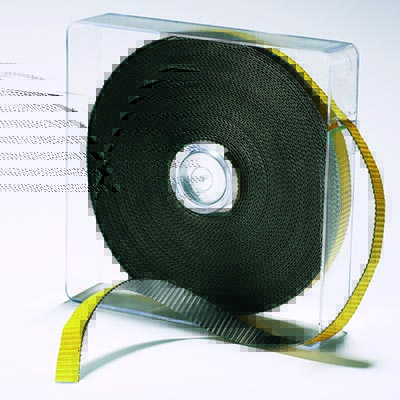

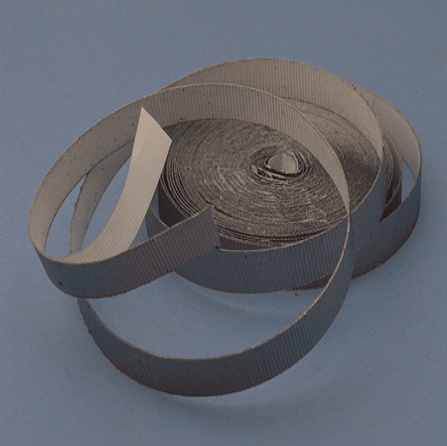

Tape - Grafit

Expanded graphite tape

Application : Virtually all media except for strong oxidizing media.

•  K35 provides leak free sealing solution for high-performance valve applications requiring excellent temperature and pressure characteristic.
•  Available in a smooth or corrugated form, with or without self-adhesive tape as well as in various dimensions and roll lengths.

Generel data

Type: Klinger TopLine K35 Tape

material: expanded graphite, wavy

Density: 1.0 g / cm3

Thickness: 0.5 mm

Min. temp. : -240 ° C

Max. temp. : 430 ° C

Max. steam temp. : 650 ° C

Max. static pressure: 350 bar

Max. rotating pressure 20 bar

max. urgent. rotating: 5 m / s

pH range 0-14

Approvals: BAM (oxygen)

: Fire-safe

: WRC (does not cover any. adheres)

The packing should not be exposed to max. temperature, pressure and speed at the same time. For further advice contact our technical department.
