Rubber

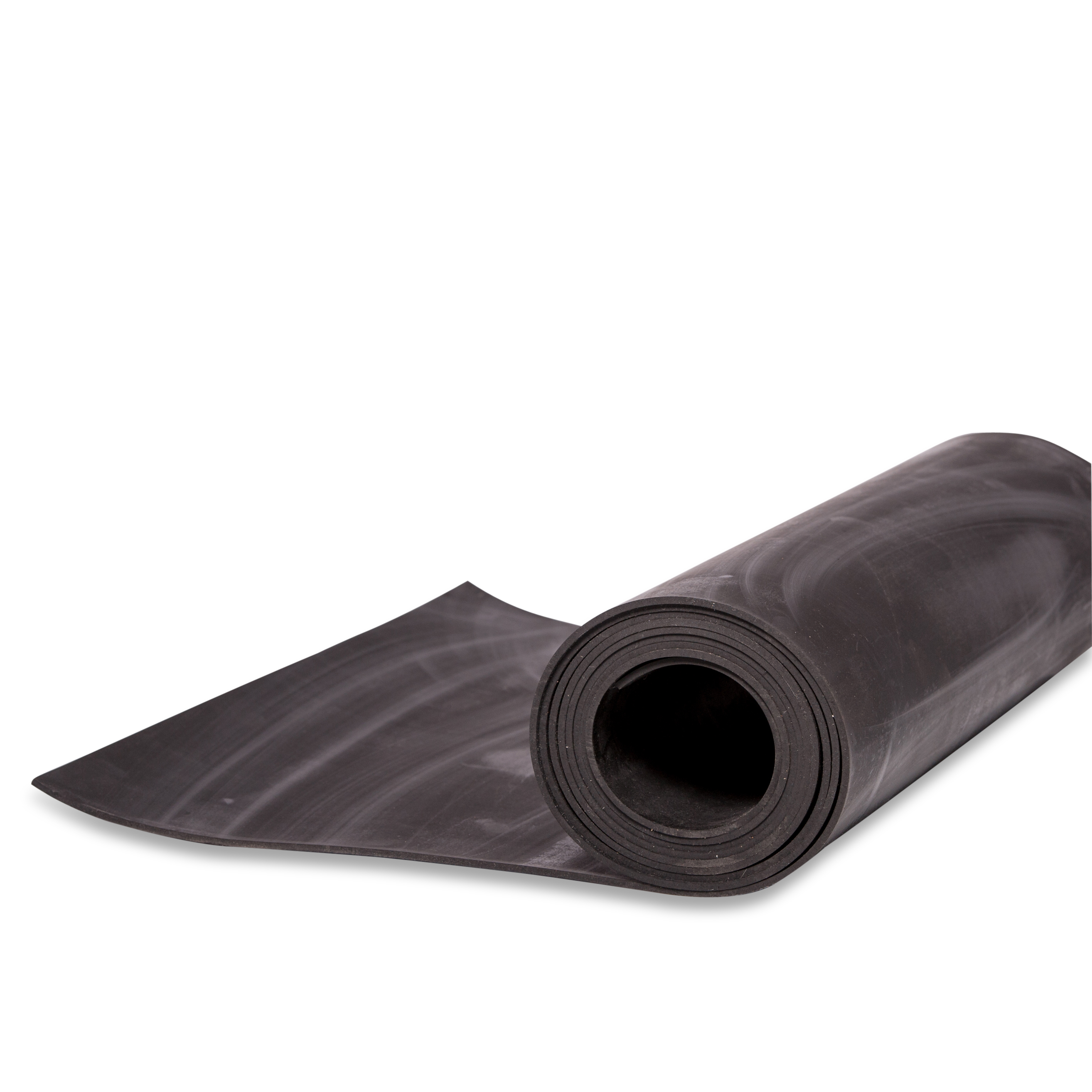

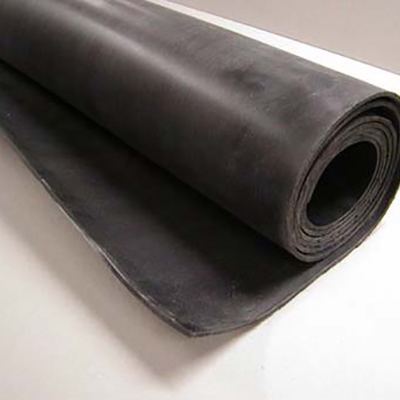

Rubber sheet with or without inserts



Application: Water, oil, acids, bases, etc.

  • Available in sheets from 1.0 to 15.0 mm and as custom gaskets
  • Used as scraper rubber, lists, shielding, shims
  • Good resistance to mineral oils, grease, water, ethylene glycol
  • Not suitable for CIP.
  • Temperature range from -20°C to +80°C.



General data

Type: NBR
Material: P9540 P518 P534 P559
color: Black Black Black Black
Density: 1,45 g/cm3  1,35 g/cm3  1,19 g/cm3  1,49 g/cm3
Tensile strength: 7 MPa 13 MPa 11 MPa 10 MPa
Tolerances hardness: 65° +/- 5 Sh A 80° +/- 5 Sh A 60° +/- 5 Sh A 70° +/- 5 Sh A
Dimension tolerance: P2 DIN 7715/5  P2 DIN 7715/5  P2 DIN 7715/5 P2 DIN 7715/5
Temperature: -10°C til +70°C -15°C til +80°C -20°C til +80°C  -20°C til +80°C

RESISTENT
Ozon: No Moderate Moderate No
Weather: No No Moderate No
Oli: God God God God
Gasolin: Resistent Resistent Høj resistent God
Acid: Moderate Resistent Resistent Moderate
Strong bases: Moderate Resistent Resistent Resistent
Slid: No God God Moderate



Type: NBR

  • Resistance List
  • Kontakt osContact us
Varenr. Tykkelse (mm) Rullebredde (mm)
Item no. Thickness (mm) Roll width (mm)
65801516 1,0 1400
65801334 1,5 1400
65801335 2,0 1400
65801336 3,0 1400
65975614 4,0 1400
65801337 5,0 1400
65801517 6,0 1400
65801339 8,0 1400
65801340 10,0 1400
65801518 12,0 1400
65801343 15 1400
Varenr. Tykkelse (mm) Rullebredde (mm)
Item no. Thickness (mm) Roll width (mm)
65801480 1,0 1400
65801481 1,5 1400
65801483 2,0 1400
65801485 3,0 1400
65801487 4,0 1400
65801488 5,0 1400
65801489 6,0 1400
65801490 8,0 1400
65801491 10 1400
Varenr. Tykkelse (mm) Rullebredde (mm)
Item no. Thickness (mm) Roll width (mm)
65801328 0,5 1400
658011329 1,5 1400
65801330 2,0 1400
65801331 3,0 1400
65801332 4,0 1400
65801333 5,0 1400
Varenr. Tykkelse (mm) Rullebredde (mm)
Item no. Thickness (mm) Roll width (mm)
65801315 3,0 1400
65801316 5,0 1400
Varenr. Tykkelse (mm) Rullebredde (mm)
Item no. Thickness (mm) Roll width (mm)
65801344 5,0 1400
65801345 6,0 1400
