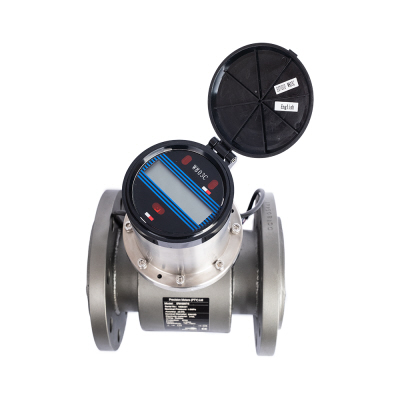

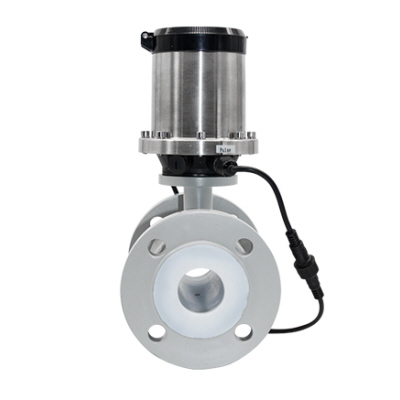

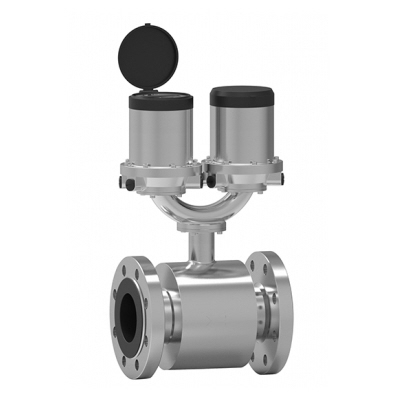

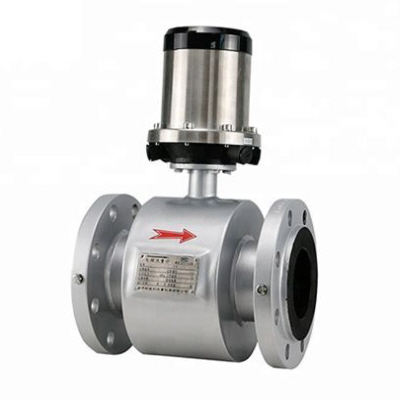

Klinger LDG-BAT are a battery driven Magnetic Inductive Flowmeter used for accurate measurement of liquid mainly in Water, Wastewater and cooling plants.
The meter can be used for all Liquids with a conductivity >20uS/cm. It is easy to mount, outdoor, where it can be difficult to establish a separate power supply.
Generelle data
| Type: | Klinger LDG-BAT |
| Dimensions: | DN 06 to DN 2.000mm |
| Process connection: | Flange EN 1092-1, JIS B2220 or ANSI 16.5 |
| Available Versions: | Sensor and transmitter can be delivered |
| Compact or separate (standard delivered with 10m cable) | |
| Liner materials: | Hard Rubber, PTFE or PPO |
| Elektrodes: | SS 1.4571, Hastelloy C, Tantal or Platin-Uridium |
| Ranges: | 0,3 til 10m/s |
| Accuracy: | ±0,5% of measured value in the range 0,3 to 10m/s |
| Forsyningsspænding: | Battery |
| Lifetime 5 years (depending on measuring frequency) | |
| Udgangssignal: | 4 t0 20mA |
| Scaled pulse | |
| Kommunikation (Option): | Modbus RS485 |

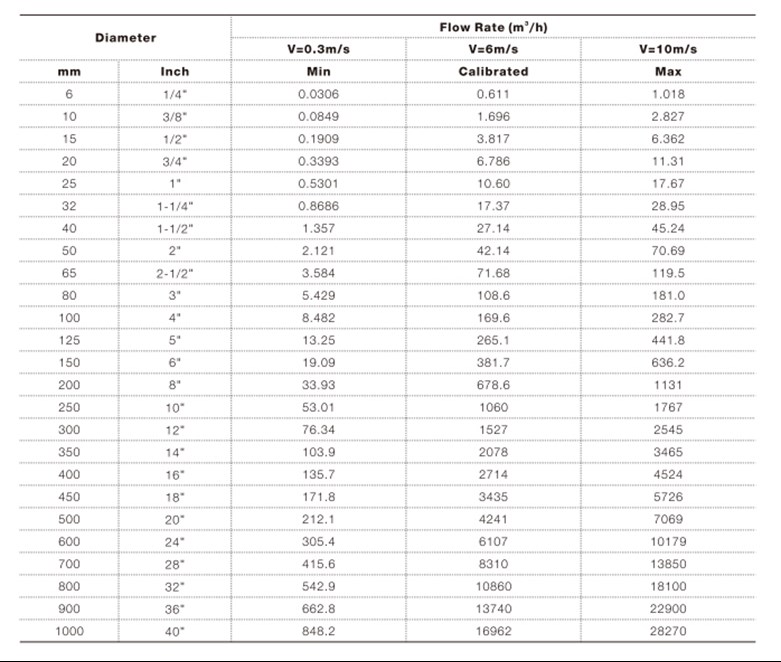

Ranges:

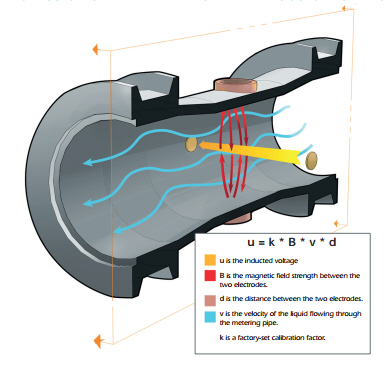

The measurement principle is based on Faradays law on magnetic induction, it says, that an electrical voltage will be induced, when a conductor passes a magnetic field.
In the magnetic inductive flow meter is the liquid the electrical conductor, and the induced voltage directly proportional to the velocity of the liquid.
