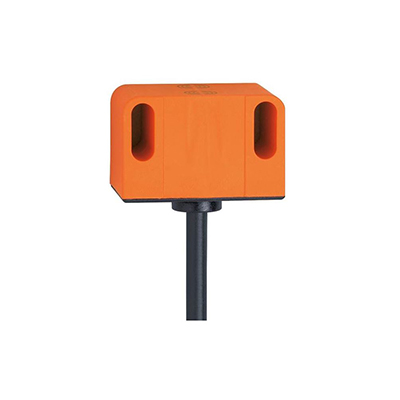

Inductive limit switches, DC, PNP, dual, NO
Application : Limit switch indication for automatic and manual shut-off valves with a 90° rotation
General Data
| Type: | IN5323 |
| Material: | Polyethylene |
| Protection degree: | IP67, II |
| Sensors: | Double inductive sensor |
| Assured operating distance: | 4 mm |
| Connection: | Cable 10m; 4 x 0.34mm2 |
| Operating voltage: | +10 to +36VDC |
| Operating current: | Max. 250mA |
| Operating temperature: | -25ºC to +80ºC |
| Switching state: | LED, yellow |
| Options: | Models for other and larger actuators |
| With plug |
| OTHER | ||||
|---|---|---|---|---|
| Item No. | Switch type | Puck type (Øxh(mm)) | Hole pattern/shaft height & Ø inner(mm) | Actuator type |
| - | IN5323 | - | 30 | - |
| 40608183 | - | E17320(53x40) | 80 x 30/ 20 / Ø46 | AP042-100 |
| 40608517 | - | E17329(65x47,5) | 130 x 30/ 30 / Ø51 | AP115-145 |
| 40608517 | + 2 pcs. 40608110 | E17329(102x47,5) | 130 x 50/ 30 / Ø88 | >AP160 |
