Threaded connection, PN 25, full drilled
Application: water, oil, and air
General data
| Type: | 3-star |
| Material: | Hot-pressed brass, chrome plated |
| Pressure class: | PN 25 |
| Ball: | Hard chrome plated brass, polished |
| Stem: | Brass |
| Lever: | Red painted galvanized steel |
| Seats: | PTFE |
| Stem seal: | PTFE + O-ring |
| Connection: | Female threaded acc. to ISO 228 |
| Temperature: | -20°C to +130°C |

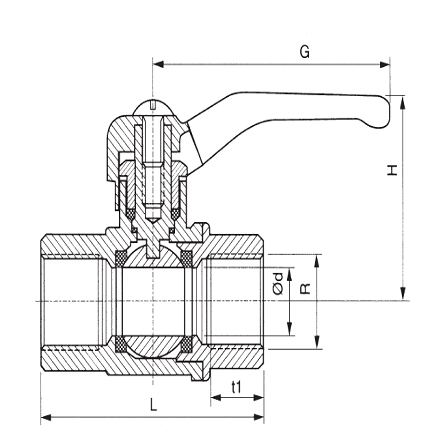

| DIMENSIONS (mm) | OTHER | ||||
|---|---|---|---|---|---|
| Item No. | DN | Ø d | L | H | G |
| 10401010 | 3/8" | 11 | 37,5 | 44 | 83 |
| 10401015 | 1/2" | 15 | 45 | 45 | 83 |
| 10401020 | 3/4" | 20 | 53 | 48 | 83 |
| 10401025 | 1" | 25 | 66 | 68 | 90 |
| 10401032 | 1.1/4" | 32 | 75 | 73 | 90 |
| 10401040 | 1.1/2" | 40 | 84 | 78 | 160 |
| 10401050 | 2" | 50 | 108 | 90 | 160 |
