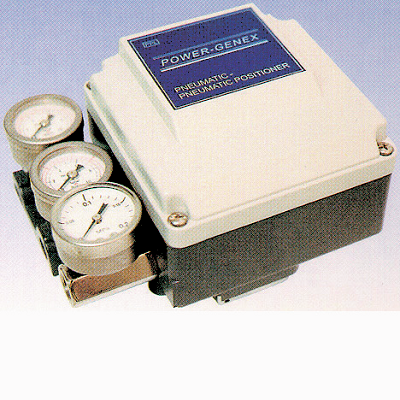

PPL for linear and PPR for 90º rotating actuator
Application: double- and single-acting pneumatic actuators
General Data

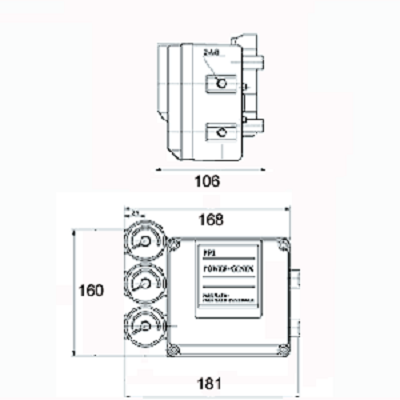

| Type: | PPL and PPR |
| Material: | Powder-coated die-cast aluminum |
| Control air: | Max. 7 bar instrument air |
| Oil, water and dust-free | |
| Max. air consumption: | 4,8 m3/h at 1,4 bar instrument air |
| Stationary air consumption: | 0,3 m³/h at 1,4 bar instrument air |
| Position Indicator: | Mechanical visual on type PPR |
| Input Signal: | 0,2-1 bar (3-15 psig) |
| Mounting: | Stainless steel AISI 304 |
| Positioner connection: | NAMUR |
| Ambient temperature: | -20ºC to + 70ºC |
| Options: | Split Range |
| Mounting for larger migrations and other rotation angels |
| Item No. | Actuator Type | Description |
|---|---|---|
| 97680045 | Linear | PPL excl. mounting |
| 97680046 | Linear | PPL incl. mounting for S actuators |
| 40507000 | 90º Rotating | PPR excl. mounting |
| Item No. | Actuator type / positioner | Dimensions |
|---|---|---|
| - | Linear | PPL + EPL: 10-80 mm migration |
| 40900130 | 90º rotating | PPR + EPR: 30 x 80 mm hole |
| 40900135 | 90º rotating | PPR + EPR: 30 x 130 mm hole |
