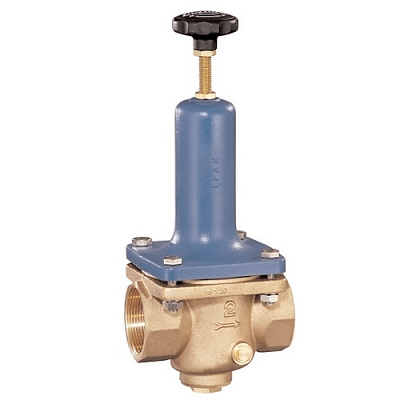

Spring loaded
Application: Primarily: Drinking water and non aggressive/adhesive liquids. Can be used for air and not aggressive gases
General Data
| Type: | 200 |
| Material: | Bronze RG5 |
| Pressure: | PN25, max. supply pressure |
| Spring Box: | DN15-25: Brass |
| DN40-50: GG25 | |
| Sealing: | NBR |
| Diaphragm: | Neoprene (CR) w/ reinforcement |
| Regulating range: | Max. 10:1 |
| Connection: | Female threaded ISO 228/1 |
| Pressure gauge 1/4" | |
| Temperature: | Max. 75ºC |
| Options: | With manometer |
| With flange: Type 230 | |
| P2: 0,8-8 bar: Type 200G and 230G | |
| P2: 0,2-2 bar: Type 250 |
| CONNECTION | REGULATING RANGE | DIMENSIONS (mm) | WEIGHT | ||||
|---|---|---|---|---|---|---|---|
| Item No. | Thread | P2 (bar) | Kvs (m3/h) | B1 | H1 | H2 | kg |
| - | 1/4" | 1,5-8 | 0,5 | 70 | 120 | 47 | 0,84 |
| - | 3/8" | 1,5-8 | 0,6 | 70 | 121 | 47 | 0,82 |
| 30501104 | 1/2" | 1,5-8 | 1,2 | 85 | 142 | 47 | 1,06 |
| 30501106 | 3/4" | 1,5-8 | 1,3 | 85 | 143 | 47 | 1,1 |
| 30501108 | 1" | 1,5-8 | 1,6 | 95 | 186 | 56 | 1,67 |
| 30501110 | 11/4" | 1,5-8 | 4,2 | 104 | 262 | 61 | 3,68 |
| 30501112 | 11/2" | 1,5-8 | 4,5 | 108 | 262 | 61 | 3,76 |
| 30501114 | 2" | 1,5-8 | 7,2 | 147 | 306 | 72 | 7,2 |
