TriClamp connection
Application: Steam, liquids, air and non aggressive gases
General data
| Type: | 1216-C |
| Material: | Acid resistant stainless steel 316L (CF-3M) |
| Pressure Class: | PN 10 |
| Setting Pressure: | Min. 0,2 bar |
| Lid: | Acid resistant stainless steel 316 |
| Seat sealing: | PTFE |
| Cone: | 316L |
| Connection: | BSP female threaded |
| Temperature: | -10°C to 350°C (limited by the packing TriClamp used) |
| When ordering: | Inform: Media, setting pressure, temperature and |
| desired capacity | |
| Options: | Seat sealing metallic - Viton |
| Connecting NPT thread | |
| With manual lifting device |

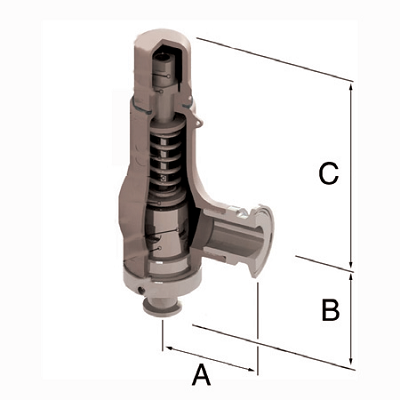

| CONNECTION | BORE | DIMENSIONS (mm) | WEIGHT | ||||
|---|---|---|---|---|---|---|---|
| Item No. | Input/departure | Orifice (mm) | Areal (mm2) | A | B | C | kg |
| - | DN15 x 25 | 9,5 | 71 | 66 | 68 | 155 | 2,5 |
| - | DN15 x 25 | 15 | 176,6 | 66 | 68 | 155 | 2,5 |
| - | DN15 x 25 | 18 | 254 | 66 | 73 | 155 | 2,9 |
| - | DN40 x 40 | 32 | 804 | 66 | 98 | 234 | 8,5 |
| - | DN15 x 1" | 9,5 | 71 | 66 | 68 | 155 | 2,4 |
| - | DN15 x 1" | 15 | 176,6 | 66 | 68 | 155 | 2,4 |
| - | DN15 x 1" | 18 | 254 | 66 | 73 | 155 | 2,8 |
| - | DN40 x 2" | 32 | 804 | 66 | 98 | 234 | 8,2 |

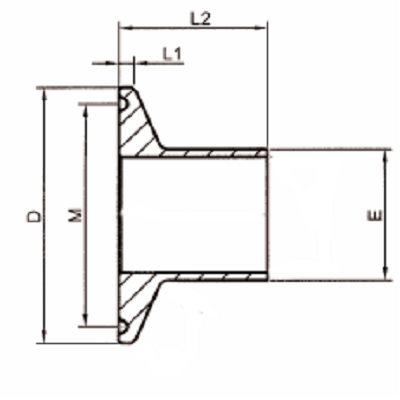

| DIMENSIONS (mm) | |||||
|---|---|---|---|---|---|
| DN | D | M | E | L1 | L2 |
| 15 | 25 | 19 | 12,7 | 2,85 | 12,7 |
| 20 | 25 | 19 | 19 | 2,85 | 12,7 |
| 1" (25) | 50,5 | 43,5 | 43,5 | 2,85 | 21,5 |
| 11/2" (38) | 50,5 | 43,5 | 43,5 | 2,85 | 21,5 |
