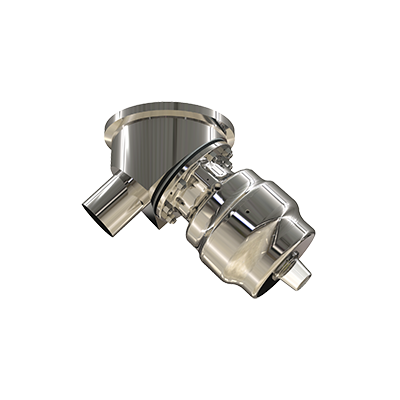

Tank Foot Valves by Saunders
Application: WFI tanks, fermenters and bioreactors
General Data
| Type: | TBV |
| Material: | Forged acid-proof stainless steel - 316L (1.4435) |
| Dimension: | DN015 - 100 |
| Internal surface finish: | Super mirror finish Ra < 0.01 µm |
| Mirror finish Ra < 0.25 µm | |
| Satin finish Ra < 0.5 µm | |
| External surface finish: | Vacublast (Glass-blown) |
| Connection: | Weld ends in all standards and Tri Clamps |
| Temperature: | Depending on diaphragm type (See pressure/temp. diagram) |
| Options: | Available in AL6XN, Hastelloy, Titanium etc. |
| Available with samplings and vent valve | |
| Many variations of surface | |
| Operation: | Fully compatible with manual bonnets, EC, ECX,ES and S360 actuators |
| and with the full program of diaphragms |
