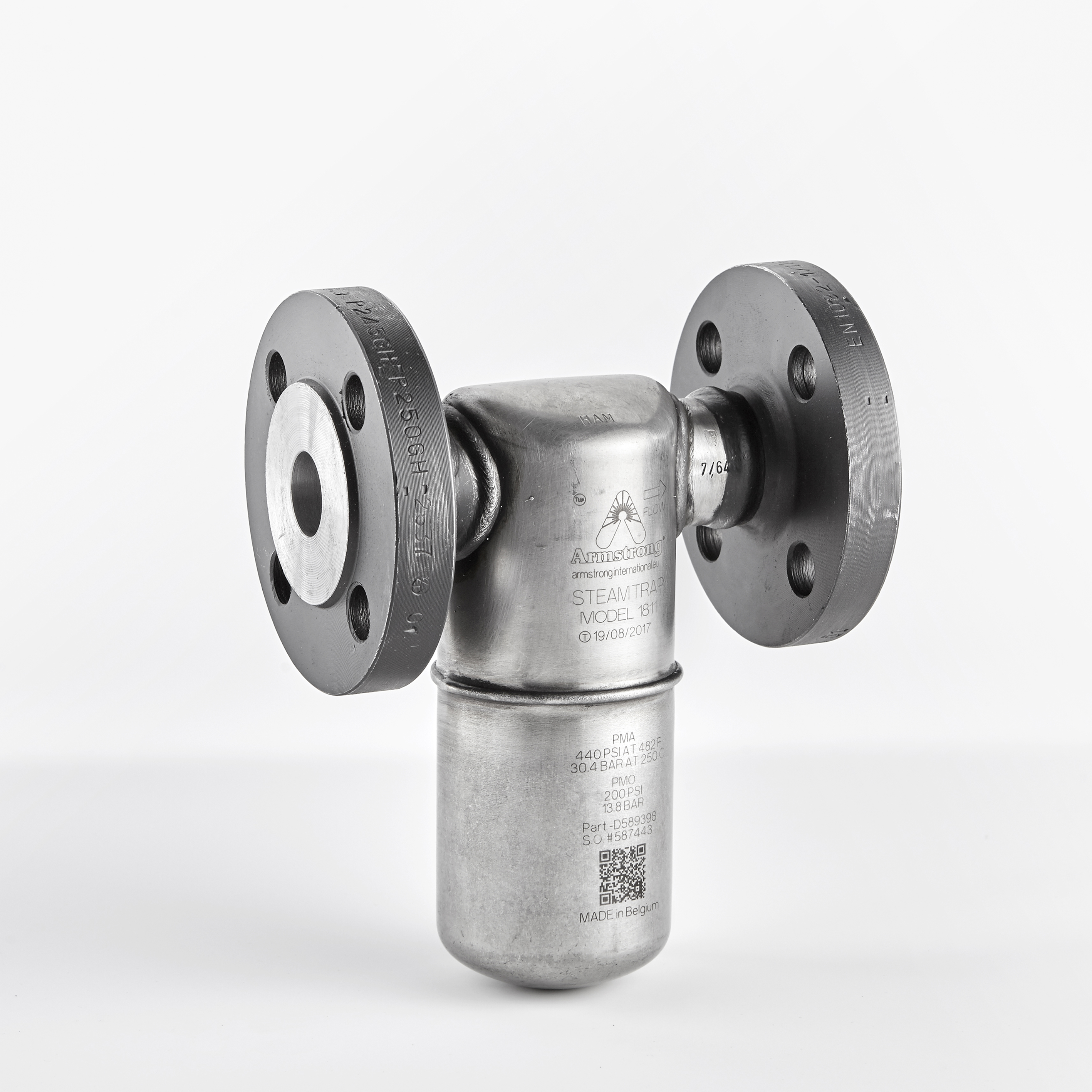

Armstrong clock water charger



1800 Series Stainless for horizontally passes

Application: The discharge of condensate from steam systems.

  • Emitter condensate continuously and instantaneously.
  • Resistant to abrasion, corrosion and liquid hammer.
  • Ventilation air and CO 2 at steam temperature.
  • Good for dirt handeling.
  • Frost resistant.



General Data

Type: Series 1800
Material: Stainless steel 304L
Internal parts: Stainless steel AISI 304
Valve and seat: Hardened chrome steel
Flanges: Steel, optional stainless steel

Max. vapour pressure : 1810 Type: 14 bar
  : 1811 Type: 28 bar
  : 1822 Type: V 45 bar / 316 ° C, 28 bar V / 427 ° C

Back pressure: Up to 99% of the inlet pressure
Connection: BSPT or NPT threaded sleeves, welding connection (SW),
  flanges PN 40 or ANSI flanges

Designtemp.: Max. 427 ° C

Options: : Other orifice sizes
  : Insulation caps for 1810/1811
  : In-line check valve
  : larger thermal vent hole or termic vent
  : Drain plug to drain cock / Pop drain

  Capacity diagrams can be obtained











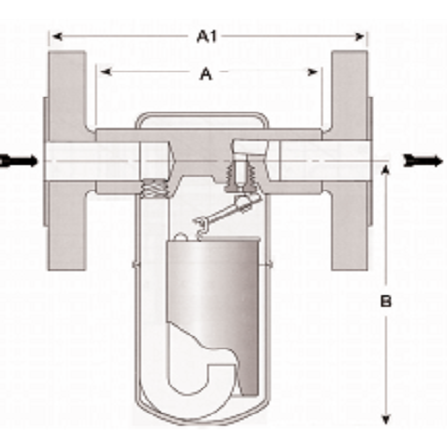

Type: Serie 1800

Type 1810 with BSPT threaded sleeves
- - - Pressure (bar) / Capacity DIMENSIONS mm -
Item No. Connection Orifice Maks.?P Kg/t A B Weight (kg)
99011200 1/2" 3/16" 1,8 400 110 113 0,8
99011201 1/2" 5/32" 3,5 450 110 113 0,8
99011018 1/2" 1/8 " 8,0 420 110 113 0,8
99011202 1/2" 7/64" 10,5 370 110 113 0,8
99011038 1/2" #38 14,0 400 110 113 0,8
99011203 3/4" #38 14,0 400 110 113 0,8
Type 1810 with welded connections (SW)
- - - Pressure (bar) / Capacity DIMENSIONS mm
Item No. Connection Orifice Maks.?P Kg/t A B Weight (kg)
- 1/2" 5/32" 3,5 450 110 113 0,8
- 1/2" 1/8 " 8,0 420 110 113 0,8
- 1/2" 7/64" 10,5 370 110 113 0,8
- 1/2" #38 14,0 400 110 113 0,8
Type 1810 with PN 40 flange connection
- - - Pressure (bar) / Capacity DIMENSIONS mm -
Item No. Connection Orifice Maks.?P Kg/t A B Weight (kg)
- 1/2" 5/32" 3,5 450 110 113 0,8
- 1/2" 1/8 " 8,0 420 110 113 0,8
- 1/2" 7/64" 10,5 370 110 113 0,8
- 1/2" #38 14,0 400 110 113 0,8
Type 1811 with BSPT threaded sleeves
- Pressure (bar) / capacity DIMENSIONS mm
Item No. connection Orifice Maks.?P Kg/t A B Weight (kg)
99011204 DN 15 3/16" 2,0 400 150 113 2,3
99011205 DN 15 5/32" 3,5 450 150 113 2,3
99011206 DN 15 1/8 " 8,0 420 150 113 2,3
99011207 DN 15 7/64" 10,5 370 150 113 2,3
99011208 DN 15 #38 14,0 400 150 113 2,3
99011209 DN 20 5/32" 3,5 450 150 116 2,8
99011210 DN 20 1/8 " 8,0 420 150 116 2,8
99011211 DN 20 7/64" 10,5 370 150 116 2,8
99011212 DN 20 #38 14,0 400 150 116 2,8
99011213 DN 25 5/32" 3,5 450 160 116 3,3
99011214 DN 25 1/8 " 8,0 420 160 116 3,3
99011215 DN 25 7/64" 10,5 370 160 116 3,3
99011216 DN 25 #38 14,0 400 160 116 3,3
Type 1811 with BSPT threaded sleeve
- - - Pressure (bar) / Capacity DIMENSIONS mm -
Item No. connection Orifice Maks.?P Kg/t A B Weight (kg)
99011764 1/2" 7/64" 14,0 400 110 138 0,9
99011303 1/2" #38 17,0 420 110 138 0,9
99011015 1/2" 5/64" 28,0 310 110 138 0,9
99011304 3/4" 1/4 " 1,0 450 110 141 1,0
99011305 3/4" 5/32" 5,0 500 110 141 1,0
99011306 3/4" 1/8 " 8,5 450 110 141 1,0
99011307 3/4" 7/64" 14,0 400 110 141 1,0
99011308 3/4" #38 17,0 420 110 141 1,0
99011309 3/4" 5/64" 28,0 310 110 141 1,0
Type 1811 with welded connections (SW)
- - - Pressure (bar) / capacity DIMENSIONS mm -
Item No. Connection Orifice Maks.?P Kg/t A B Weight (kg)
99018045 1/2" 1/8 " 8,5 450 110 138 0,9
- 1/2" 7/64" 14,0 400 110 138 0,9
99018131 1/2" 5/64" 28,0 310 110 138 0,9
- 3/4" 7/64" 14,0 400 110 141 1,0
99018067 3/4" #38 17,0 420 110 141 1,0
- 3/4" 5/64" 28,0 310 110 141 1,0
Type 1811 with welded connections (SW)
- - - Pressure (bar) / Capacity DIMENSIONS mm -
Item No. Connection Orifice Maks.?P Kg/t A B Weight (kg)
- 1/2" 5/32" 5,0 500 110 138 0,9
- 1/2" 1/8 " 8,5 450 110 138 0,9
- 1/2" 7/64" 14,0 400 110 138 0,9
- 1/2" #38 17,0 420 110 138 0,9
- 1/2" 5/64" 28,0 310 110 138 0,9
- 3/4" 5/32" 5,0 500 110 141 1,0
- 3/4" 1/8 " 8,5 450 110 141 1,0
- 3/4" 7/64" 14,0 400 110 141 1,0
- 3/4" #38 17,0 420 110 141 1,0
- 3/4" 5/64" 28,0 310 110 141 1,0
Type 1811 with PN 40 flange connection
- - - Pressure (bar) / Capacity DIMENSIONS mm -
Item No. Connection Orifice Maks.?P Kg/t A1 B Vægt (kg)
99011316 DN 15 5/32" 5,0 500 150 138 2,5
99011317 DN 15 1/8 " 8,5 450 150 138 2,5
99011318 DN 15 7/64" 14,0 400 150 138 2,5
99011319 DN 15 #38 17,0 420 150 138 2,5
99011320 DN 15 5/64" 28,0 310 150 138 2,5
99011321 DN 20 5/32" 5,0 500 150 141 3,2
99011322 DN 20 1/8 " 8,5 450 150 141 3,2
99011323 DN 20 7/64" 14,0 400 150 141 3,2
99011324 DN 20 #38 17,0 420 150 141 3,2
99011325 DN 20 5/64" 28,0 310 150 141 3,2
99011326 DN 25 5/32" 5,0 500 160 141 3,6
99011327 DN 25 1/8 " 8,5 450 160 141 3,6
99011328 DN 25 7/64" 14,0 400 160 141 3,6
99011329 DN 25 #38 17,0 420 160 141 3,6
99011330 DN 25 5/64" 28,0 310 160 141 3,6
Type 1822 with BSPT threaded sleeves
- - - Pressure (bar) / Capacity DIMENSIONS mm -
Item No. Connection Orifice Maks.?P Kg/t A B Weight (kg)
99011399 1/2" 3/16" 5,5 810 127 186 3,0
99011401 3/4" 5/32" 8,5 800 127 186 3,0
99011402 3/4" 1/8 " 17,0 700 127 186 3,0
99011403 3/4" 7/64" 21,0 600 127 186 3,0
99011404 3/4" #38 45 600 127 186 3,0
99011405 1 " 1/4 " 2,6 800 127 181 3,0
99011406 1 " 5/32" 8,5 900 127 181 3,0
99011407 1 " 1/8 " 17,0 800 127 181 3,0
99011408 1 " 7/64" 21,0 550 127 181 3,0
99011409 1 " #38 41,5 600 127 181 3,0
Type 1822 with welded connections (SW)
- - - Pressure (bar) / Capacity DIMENSIONS mm -
Item No. Connection Orifice Maks.?P kg/t A B Weight (kg)
- 3/4" 5/32" 8,5 800 127 186 3,0
- 3/4" 1/8 " 17,0 700 127 186 3,0
- 3/4" 7/64" 21,0 600 127 186 3,0
- 3/4" #38 45 600 127 186 3,0
- 1 " 5/32" 8,5 900 127 186 3,0
- 1 " 1/8 " 17,0 800 127 186 3,0
- 1 " 7/64" 21,0 550 127 186 3,0
- 1 " #38 45 600 127 186 3,0
Type 1822 with PN 40 flange connection
- - - Pressure (bar) / Capacity DIMENSIONS mm -
Item No. Connection Orifice Maks.?P Kg/t A1 B Weight (kg)
99011411 DN 20 5/32" 8,5 900 190 186 5,2
99011412 DN 20 1/8 " 17,0 800 190 186 5,2
99011413 DN 20 7/64" 21,0 550 190 186 5,2
99011414 DN 20 #38 45 600 190 186 5,2
99011415 DN 25 5/32" 8,5 900 200 186 5,6
99011416 DN 25 1/8 " 17,0 800 200 186 5,6
99011417 DN 25 7/64" 21,0 550 200 186 5,6
99011418 DN 25 #38 41,5 600 200 186 5,6
