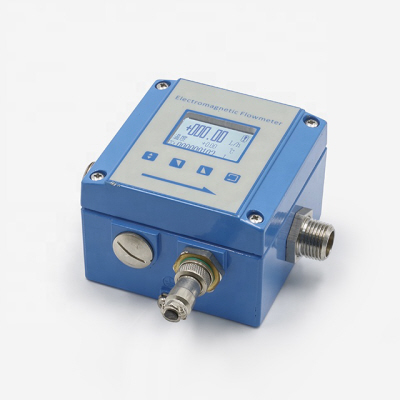

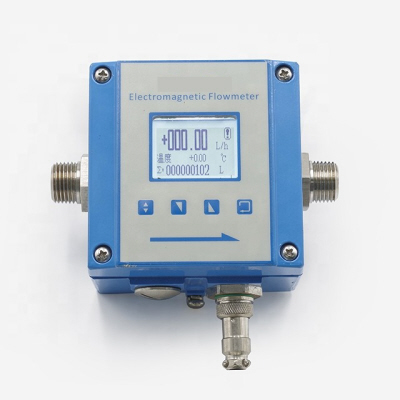

Klinger MiniMag is a magnetic inductive flow meter for accurate measurement of liquids in all types of industrial plants, as well as in water, wastewater and cooling systems - in small pipedimensions.
The meter can be used for all liquids with electrical conductivity (> 20uS / cm), and the measurement signal is shown on a digital display, as well as via a large selection of electrical output signals for the overall control system. Setup
Generel data
| Type: | Klinger MiniMag |

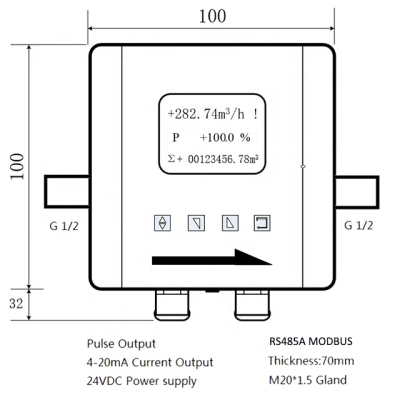

| Dimensions: | DN03 to DN20mm |
| Process connection: | Thread (Male) |
| Housing: | Compact housing / Aluminium |
| Pipe materials: | PEEK |
| Elektrodes: | SS 1.4571 |
| Grounding: | SS 1.4571 |
| Ranges: | 0,3 to 10m/s |
| Accuracy: | ±1% of measured value |
| Power Supply: | 24VDC (+/-10%) |
| Output: | Analogue: 4...20mA |
| Frequency: 0...5kHz | |
| Option: 1xrelay / RS485 (Modbus) |
The measurement principle is based on Faradays law on magnetic induction, it says, that an electrical voltage will be induced, when a conductor passes a magnetic field.
In the magnetic inductive flow meter is the liquid the electrical conductor, and the induced voltage directly proportional to the velocity of the liquid.
